Snake runner & snake gate

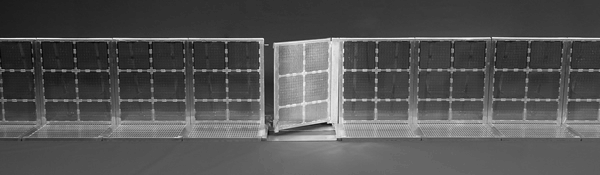

SNAKE RUNNER

A hinged section to create a door-like opening in the barrier. The snake runner enables crew to feed cables through, allowing multi-cores and power cables to safely cross the barrier section after or during installation or removal (allowing for fast load outs). On the fixed vertical part, the floor plate is present, as are the braces and rear step for security personnel. The door of the snake runner has a width of 0.50 m. Ideal for use in front of  stage areas.

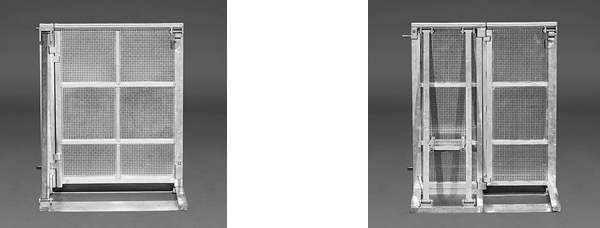

Snake gate and Snake runner



SNAKE GATE

Wider than the snake runner, the snake gate is just that; a gate through which crew are able to feed cables during or after installation or removal. The snake gate can also be used as regular gateway enabling crew to walk through with for example flightcases. Its door width is 0.85 m and it is ideal for use in an area that doesn’t have too large crowd pressure, for instance, camera platforms or mix positions.

Snake Gate



TECHNICAL SPECS SNAKE RUNNER

  • Same material specifications and looks similar to the straight barrier
  • Straight barrier with hinged section to create opening
  • Door width 0.50 m
  • Door opens towards the crowd
  • Connects to adjoining section by one single bolt
  • Enables crew to feed cables through barrier line, up to 3.5 cm thick
  • Floor plate, double braces and rear step on fixed vertical part
  • Door locks with built-in bolt to ensure continuous strength of barrier line
  • Also available with black upright
  • Use in high crowd pressure areas:



 TECHNICAL SPECS SNAKE GATE

  • Same material specifications and looks similar to the straight barrier
  • Straight barrier with hinged section to create opening
  • Door width 0.85 m
  • Door opens towards the crowd
  • Connects to adjoining section by one single bolt
  • Enables crew to feed cables through barrier line, up to 3.5 cm thick
  • No continuous floor plate and rear step
  • Door locks with built-in bolt to ensure continuous strength of barrier line
  • Also available with black upright
  • Use in high crowd pressure areas:
