Alternative doors

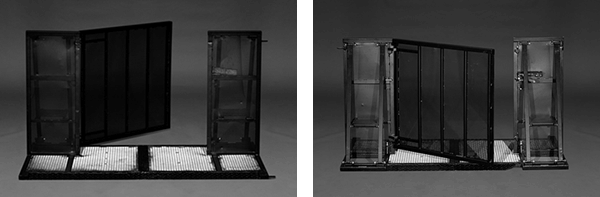

1 METER DOOR

The 1 meter door is ideal for pedestrians, crew or most wheelchairs. It has a sloped floorplate and a locking handle at a convenient operating height and includes a cover so it cannot be operated by people standing on the front side of the door. The door unit (floorplate and loose door) can be attached to regular straight sections. The door turns away from the audience and is available in a left or right opening.

1 meter door

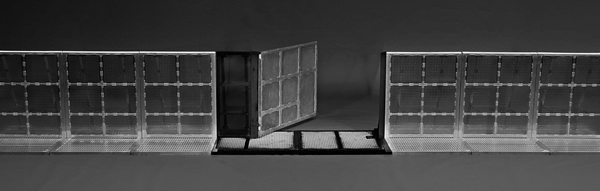

1.50 METER DOOR

Similar to the 1 meter door but wider, this unit can also be used as a quick exit for smaller venues or shows. The door unit comprises a floorplate, a post and a door. The door turns away from the audience and is available in a left or right opening.

1 meter 50 door



TECHNICAL SPECS 1 METER DOOR

  • Door opening 1.00 m
  • Steel floorplates, door and doorposts
  • Door opens away from the crowd
  • Lock and cover at convenient operating height
  • Available in black only
  • Left and right opening available
  • Sloped floorplates (back and front)
  • Connects to adjoining sections with only one bolt
  • Use in high crowd pressure areas:



TECHNICAL SPECS 1.50 METER DOOR

  • Aluminum door, black steel floorplates and doorposts
  • Door opens away from the crowd
  • Left & right version available
  • Left locks by integrated lock in door, right locks by lock integrated in adapter
  • Floorplates and doorposts in black only
  • Doors in silver aluminum only
  • Sloped floorplates (back and front)
  • Connects to adjoining sections with only one bolt
  • Use in high crowd pressure areas:
